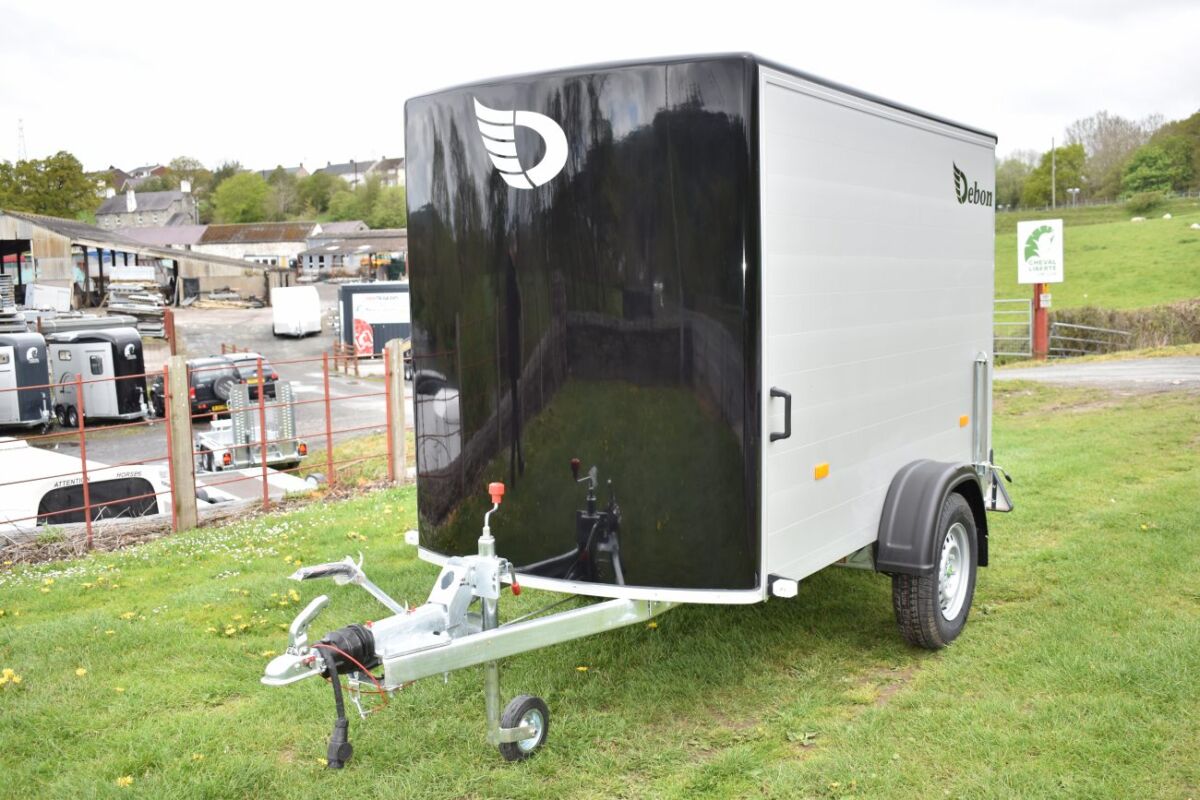

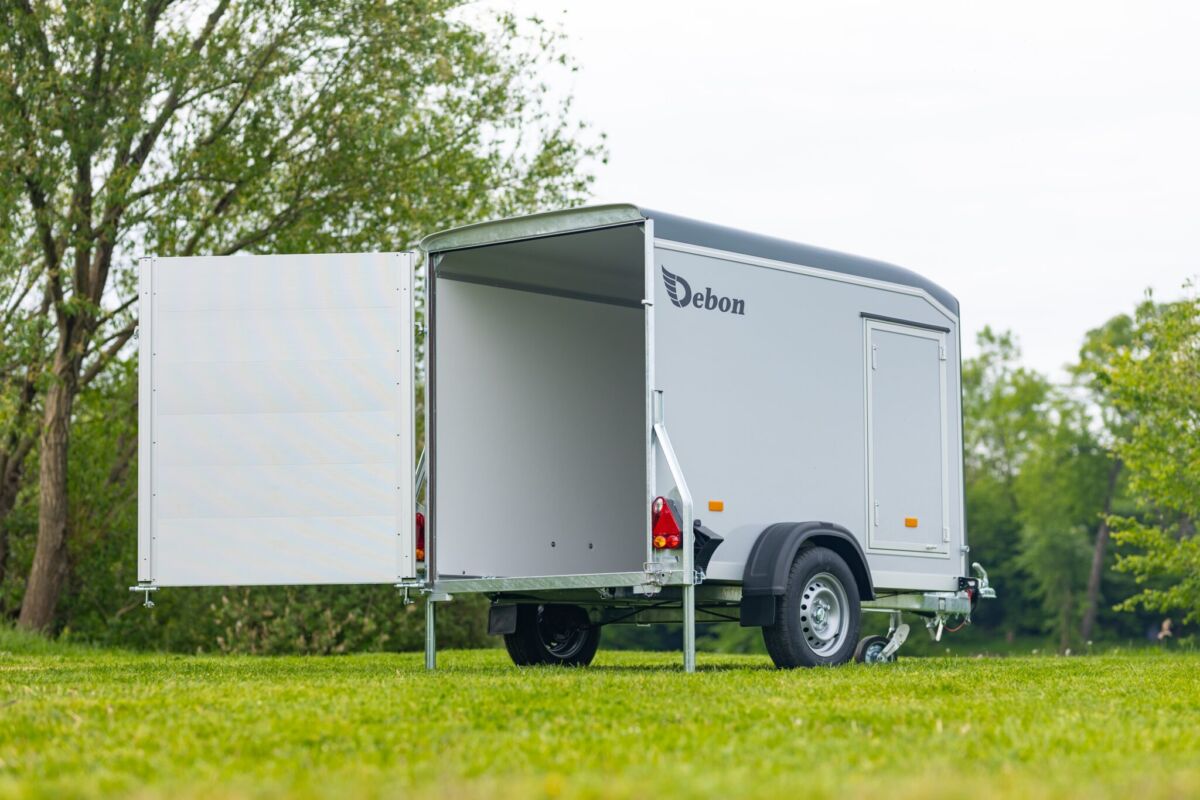

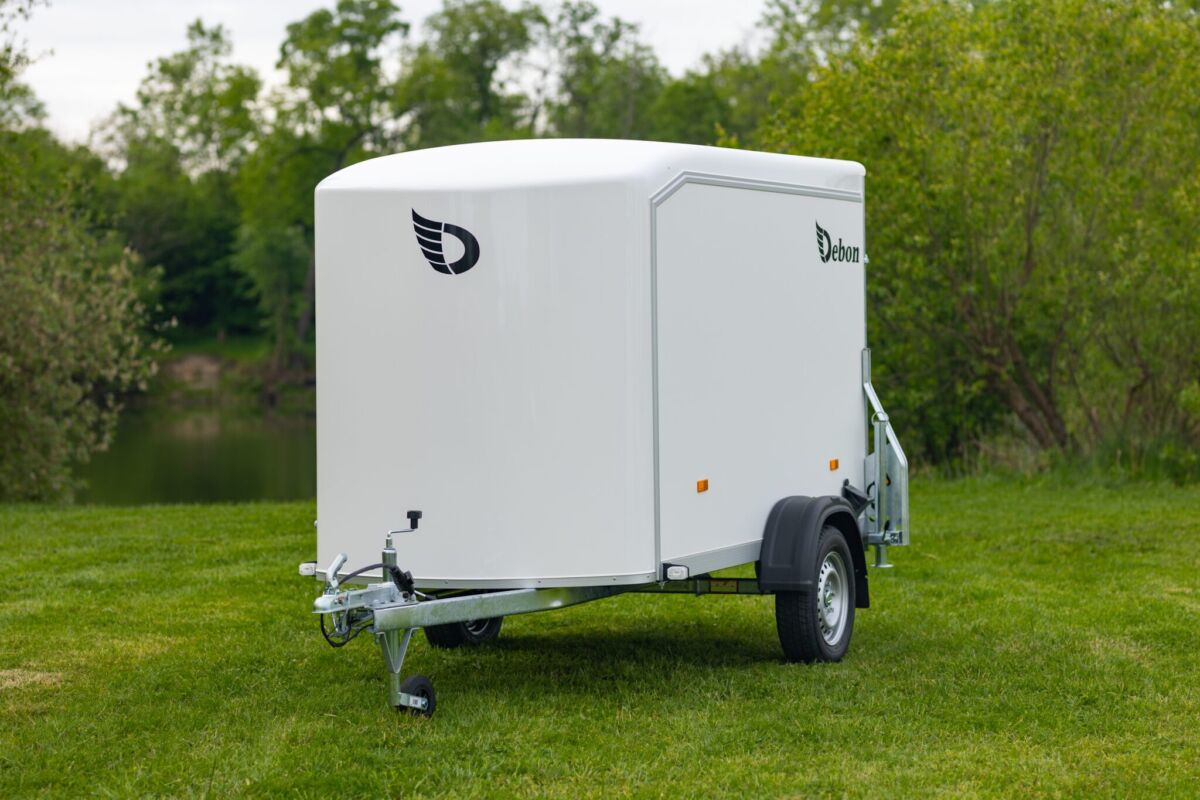

The C255 is a braked single axle box trailer with a maximum gross weight of 1300kg.  Lightweight and aerodynamic, the C255 features a polyester single piece front and roof.  The body sides are manufactured using plastic coated plywood which can be upgraded with aluminium planking if desired. The hinging rear barn type door is equipped with stainless steel hinges and lockable handle.

Standard Features

  • 370kg unladen weight.
  • 1300kg gross weight.
  • Knott heavy-duty axle and coupling.
  • Anti-slip multiplex flooring.
  • Galvanised steel chassis with aluminium extrusion framework.
  • Plastic-coated plywood sides – available in light grey or white.
  • Single piece polyester roof and aerodynamic front – available in anthracite, red, light grey, white or black.

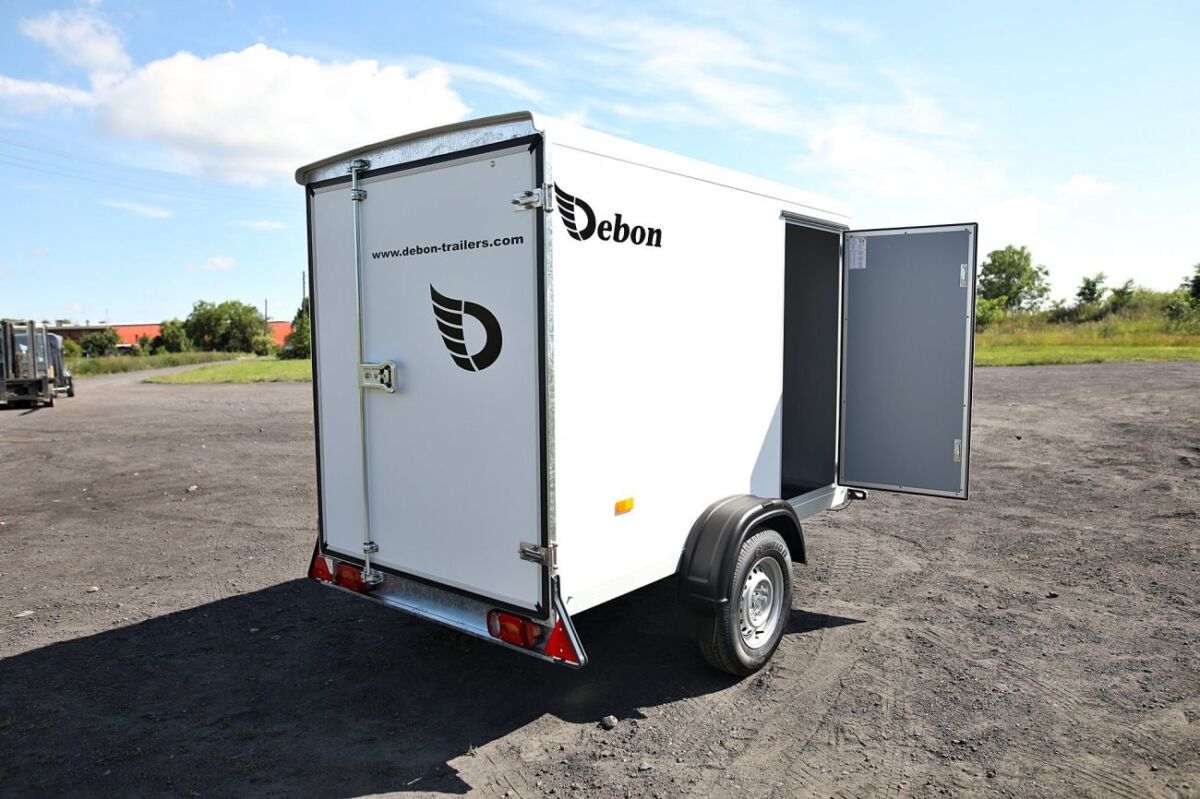

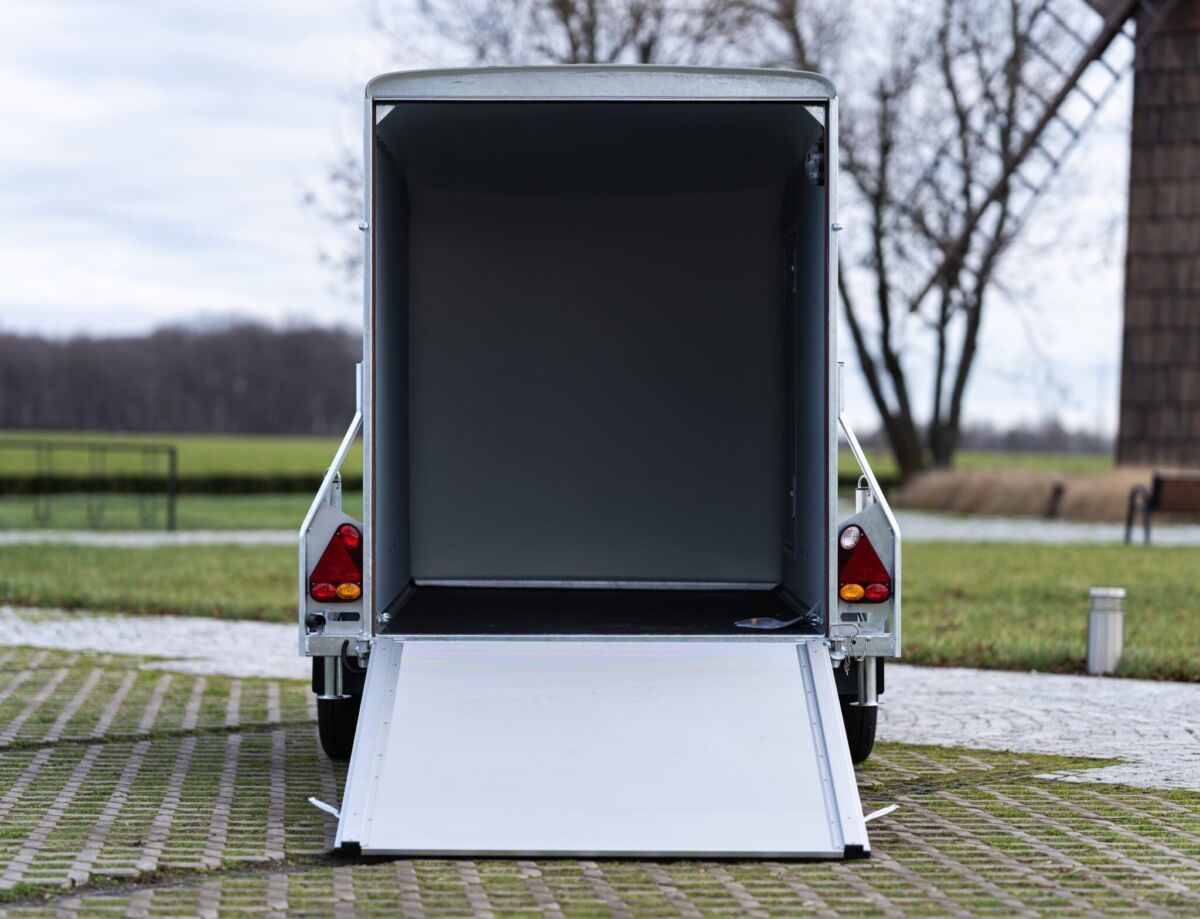

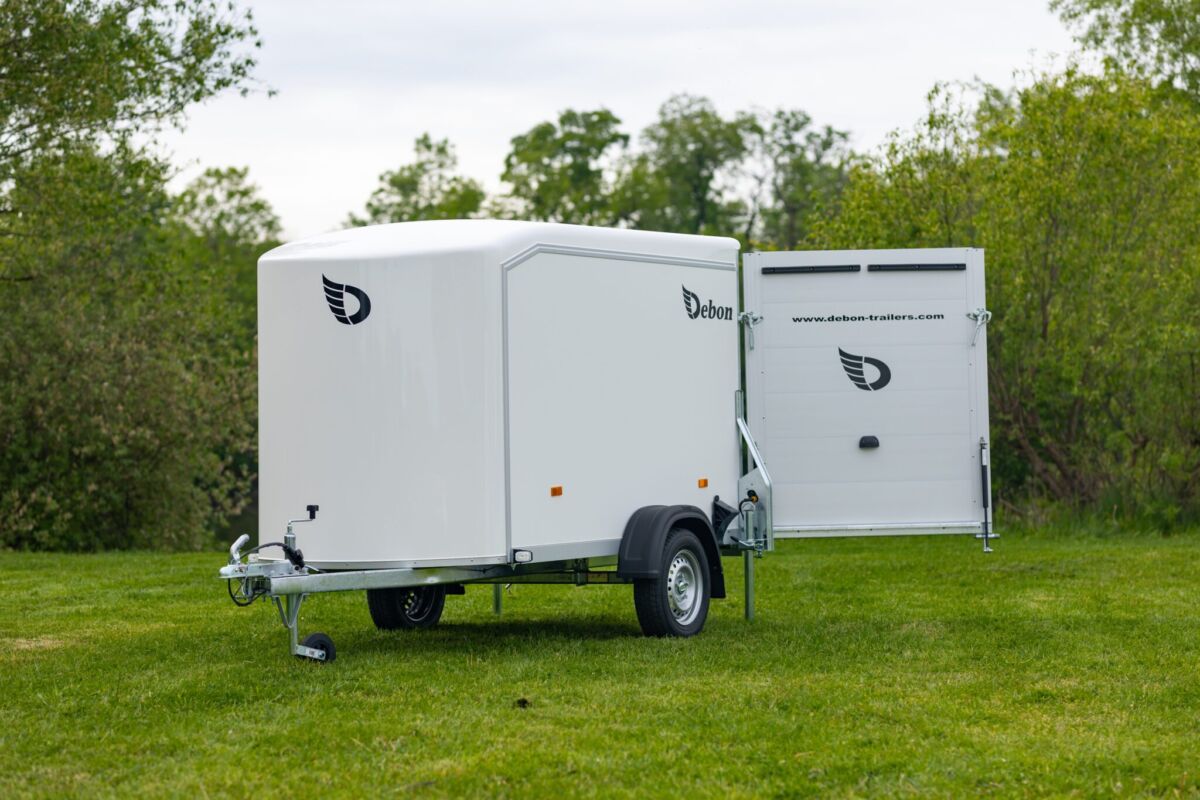

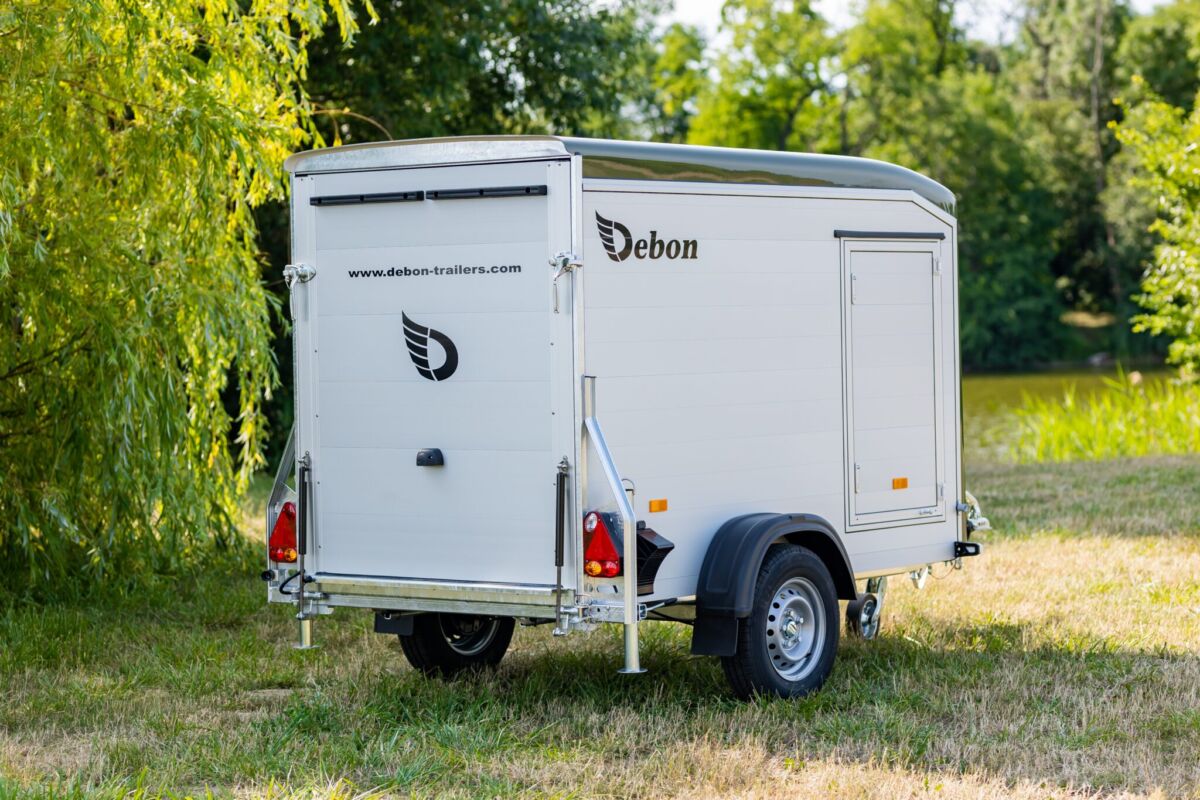

  • Rear barn type door with stainless steel hinges and stainless steel lockable handle.
  • Rear prop stands.
  • 4 x tie rings.
  • Interior lighting.
  • Wheel chocks.
  • 165R13C wheels.
  • Spare wheel.

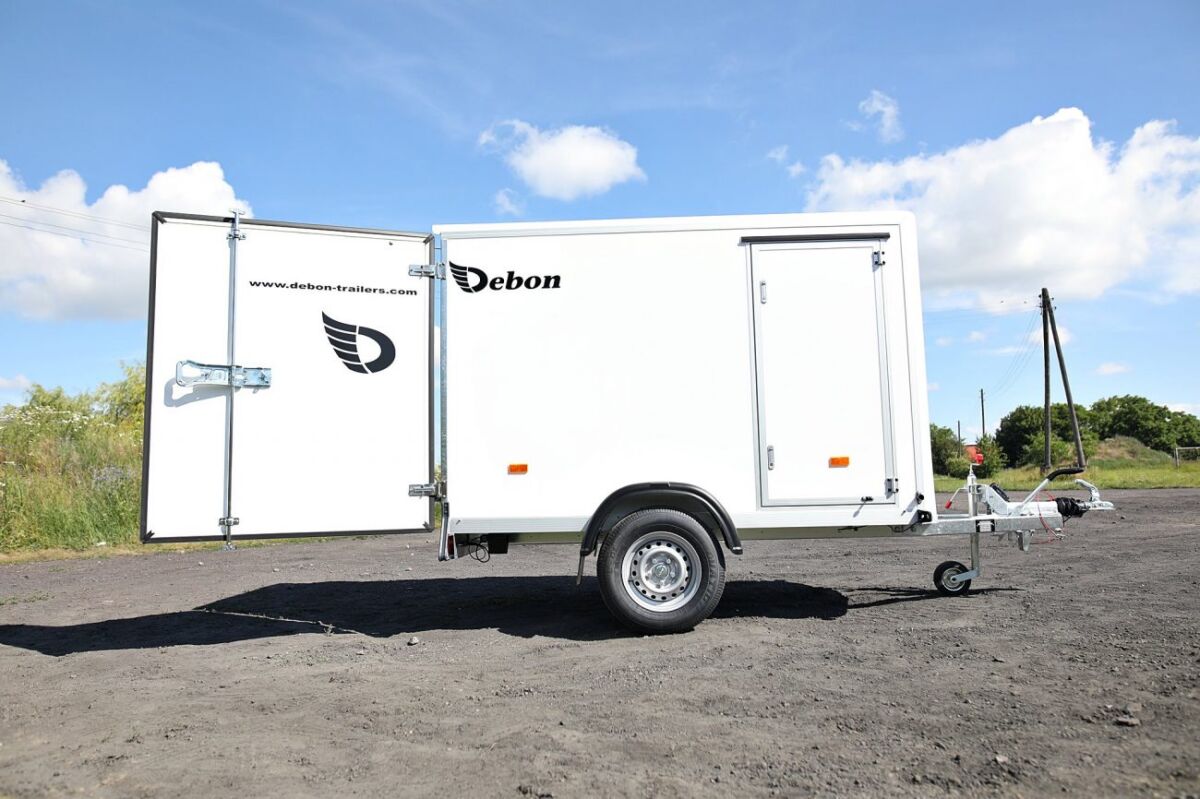

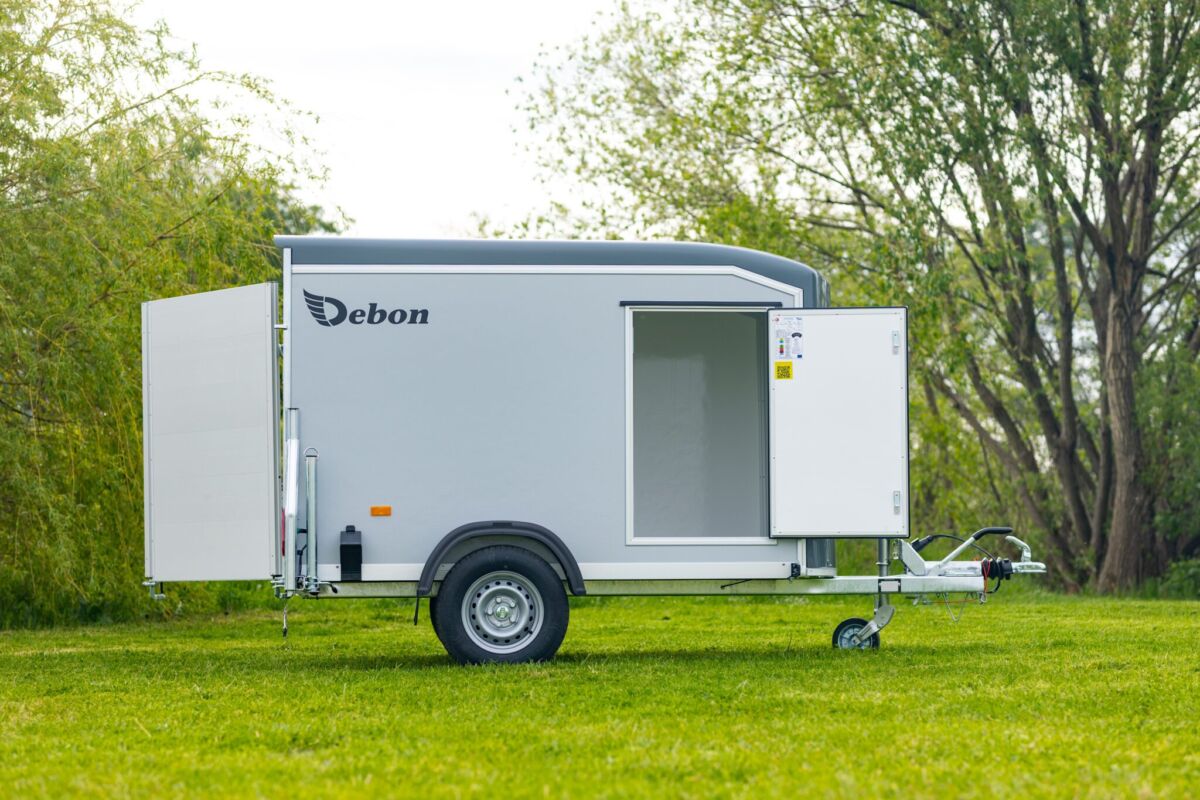

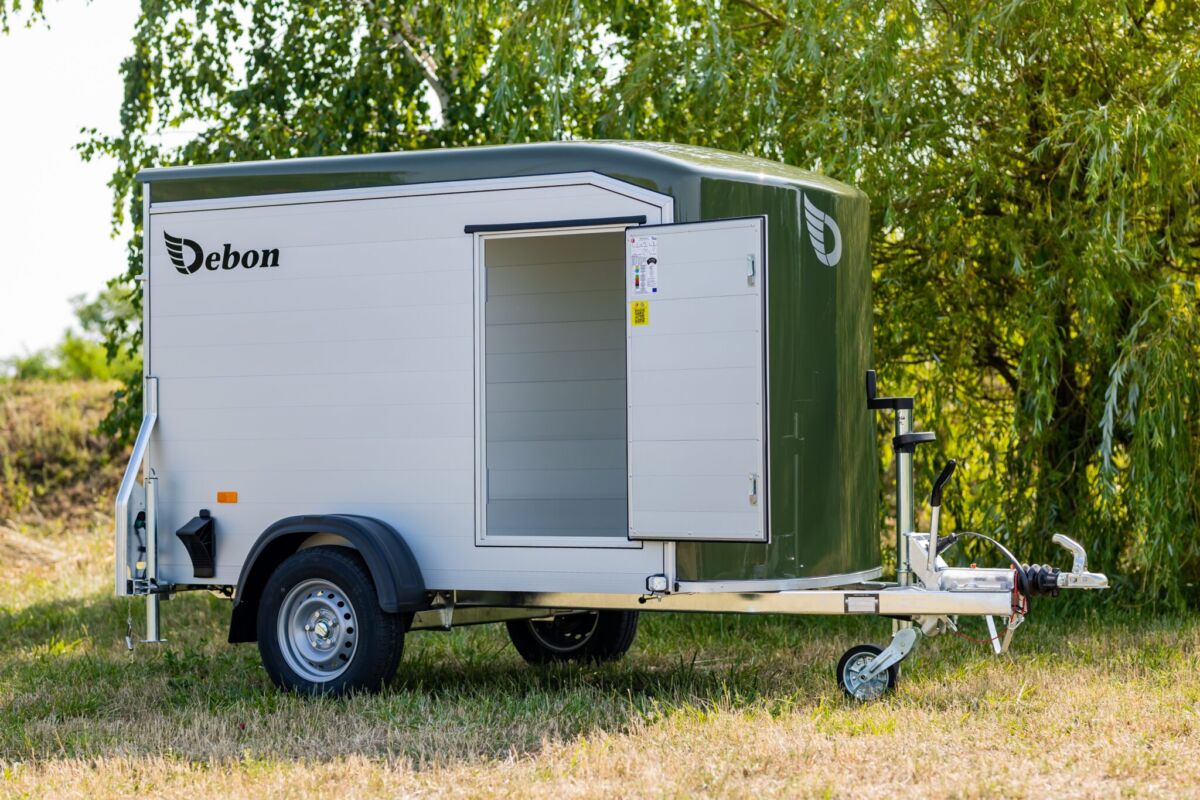

  • Side access door.

Optional Features

  • Aluminium sides.


Axles Single
External Dimensions 3600mm x 1700mm x 2050mm
Internal Dimensions 2550mm x 1250mm x 1550mm
Unladen Weight 370kg
Gross Weight 1300kg
Wheels 165R13C
