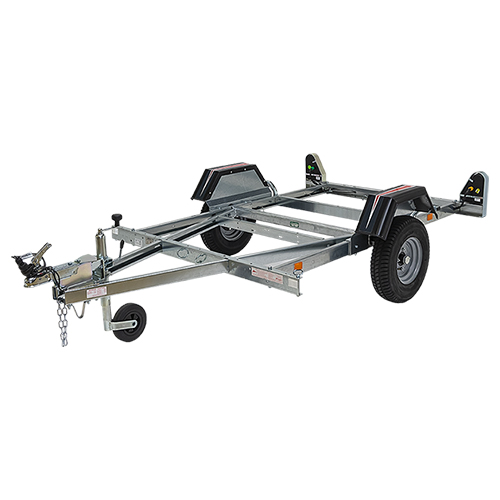

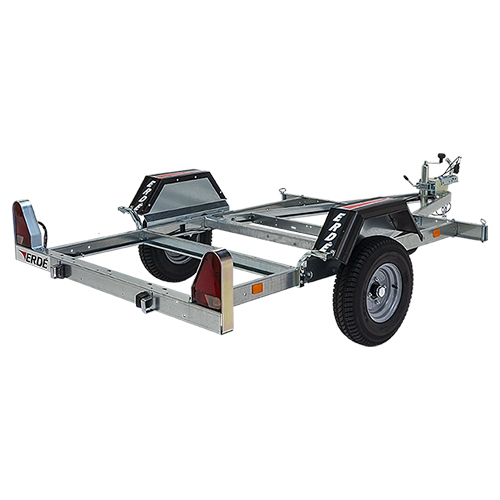

MP6806 Erde CH451 Multifunctional Trailer Chassis

Category:
  • Gross Weight – 600kg
  • External Body Dimensions (cm)
    • L x 306
    • W x 160
    • H x 70
  • Internal Body Dimensions (cm)
    • L x 200
    • W x 117
  • Unladen Weight – 109kg
  • Load Weight Capacity – 494kg
  • Painted galvanized steel mudguards with rolled edges
  • Jockey wheel included
  • Several Accessories available (see below)



Download Brochure



Height 70cm
Length 306cm
Width 160cm
Axel Capacity 494kg
Unladen Weight 109kg
Wheel Torque Settings 70 N/m or 52 lb/ft, 17mm socket in hubs with nuts (RTN) and 19mm on hubs with studbolts (Alko)
Tyre Pressure 3.5 (Bar) / 50.7 (PSI)
